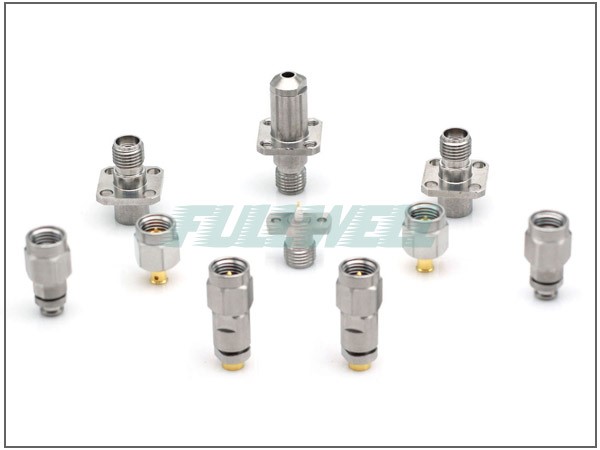

2.92 MM connector
Impedance 50 Ω
Operating frequency range 0~40 GHz
RMS Min. depending on whether the voltage rating is ≥ 500 V or whether the cable is free.
Insulation resistance voltage 750 V RMS
Contact resistance Inner Contact Ω ≦ 3 m
The Outer Contact Ω ≦ 2 m
Product features
The precision process provides superior electrical performance up to 40 GHz.

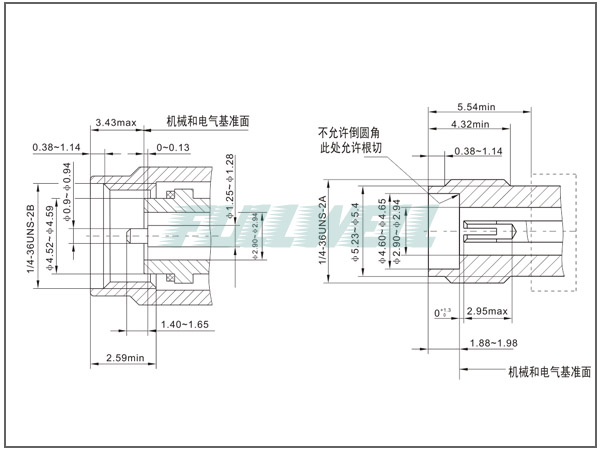

Interface dimensions conform to MIL-STD-348 specifications.
Controllable docking interface provides consistent electrical performance.
The product application
Test and measure equipment
