SMC connectors

Electrical characteristics

50 Ω / 75 Ω impedance

Operating frequency range 0 to 10 GHz

Voltage Standing Wave Ratio ≤1.3 (Staight Connector)

≤ 1.45 (Right Angle Connector)

Signal leakage ≥90 dB

Insulation resistance voltage 750 V RMS

The RMS voltage rating of 250 V (depending on cable)

Internal conductor resistance Ω 5 m or less

External conductor impedance Ω 2.5 m or less

Product features

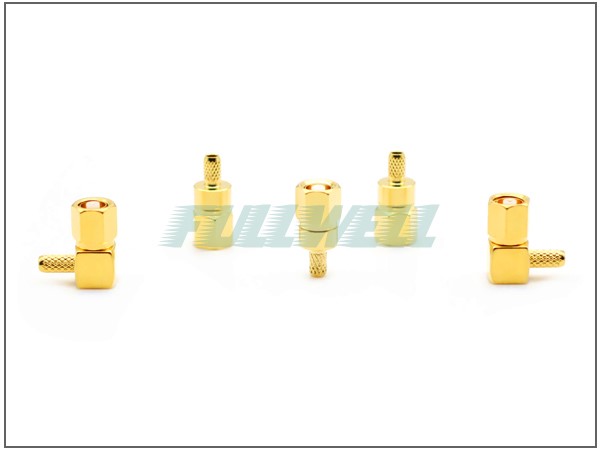

Linker for cable (straight or right Angle), suitable for soft or semi-rigid cable with external diameter of 3.1mm

Frequency range up to 10 GHz

Threaded connection locking mechanism.

Impedance of 50 and 75 ohms.

Various electroplating options are available.

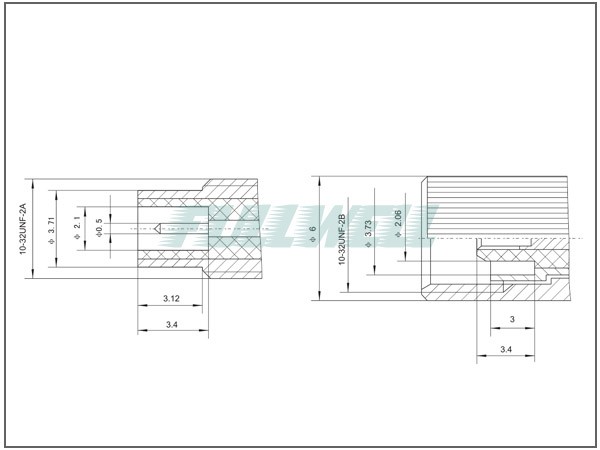

Interface dimensions conform to IEC 169-9, MIL-STD-348B
