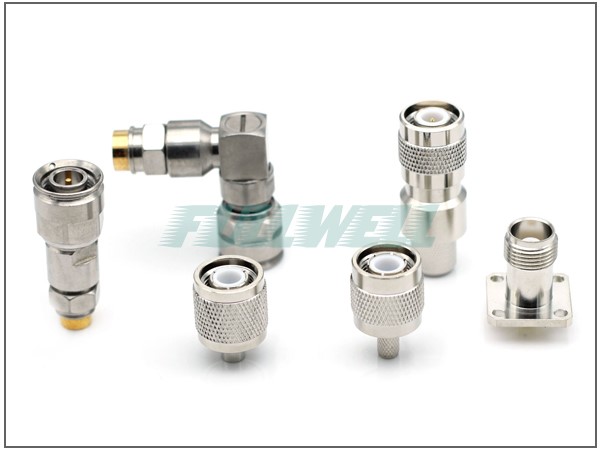

TNC connectors

Electrical characteristics

50 Ω / 75 Ω impedance

Operating frequency range 0 to 11 GHz / 0 to 1 GHz

Voltage Standing Wave Ratio ≤1.3 (Staraight Connector)

≤ 1.35 (Right Angle Connector)

Signal leakage ≥60 dB

Insulation resistance voltage 1500 V RMS

Page 4 of 4 Voltage RMS ≥500 V depending on cable.

Internal conductor resistance Ω 1.5 m or less

External conductor impedance Ω 1 m or less

Product features

• Connectors are suitable for applications where safety is not compromised, such as test and   measurement as well as medical equipment.

• Various specifications for various common coaxial cables.

• Threaded connection locking mechanism.

• Clamp terminals provide low installation costs

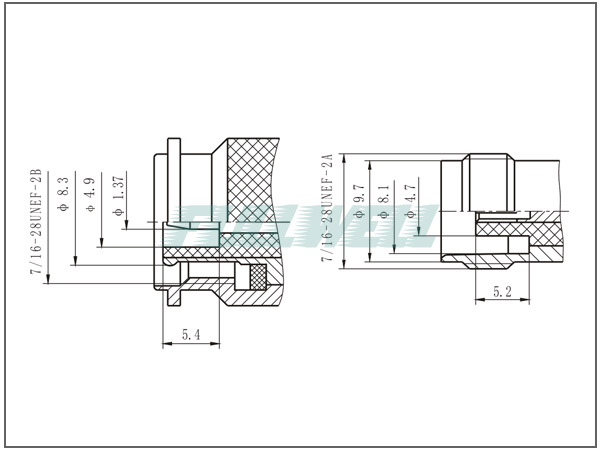

• Interface dimensions to IEC 169-17, MIL-STD-348B
