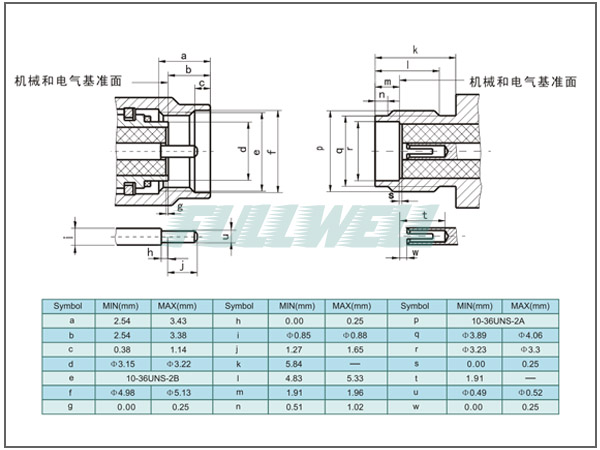

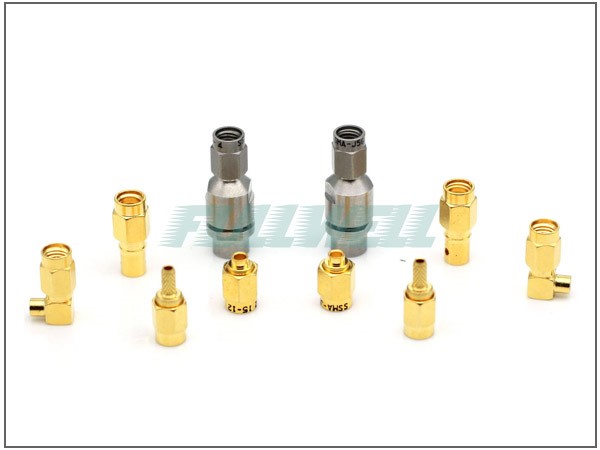

The SSMA connector

Electrical characteristics

Impedance 50 Ω

Operating frequency range 0 to 40 GHz

Voltage Standing Wave Ratio ≤1.2 +.03F (GHz)

Signal leakage ≥60 dB

Insulation resistance voltage 750 V RMS

Page 4 of 4 Voltage RMS ≥500 V depending on cable.

Internal conductor resistance Ω 5 m or less

External conductor impedance Ω 2.5 m or less
