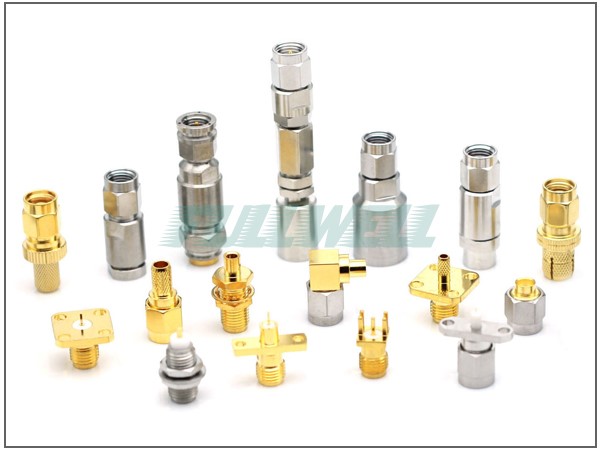

SMA connector

Impedance 50 Ω

Operating frequency range 0 to 18 GHz

Voltage Standing Wave Ratio ≤1.2 +.03F (GHz)

Signal leakage ≥60 dB

Insulation resistance voltage 1000 V RMS

Page 4 of 4 Voltage RMS ≥500 V depending on cable.

Internal conductor resistance Ω 3 m or less

External conductor impedance Ω 2.5 m or less

Product features

Commercial grades (brass SMA) available.

Can be used in a variety of cable groups, including dual shield RG316.

Comply with MIL -- PRF -- 39012F and CECC 22110/1111 standards.

Gold plated or stainless steel passivation can be produced.

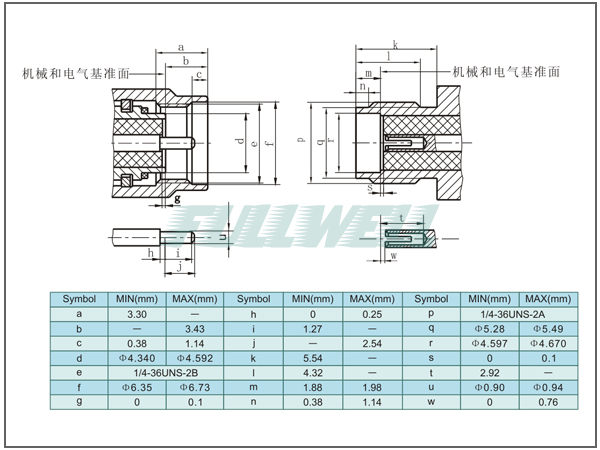

Interface dimensions conform to IEC 169-15, MIL-STD-348B
