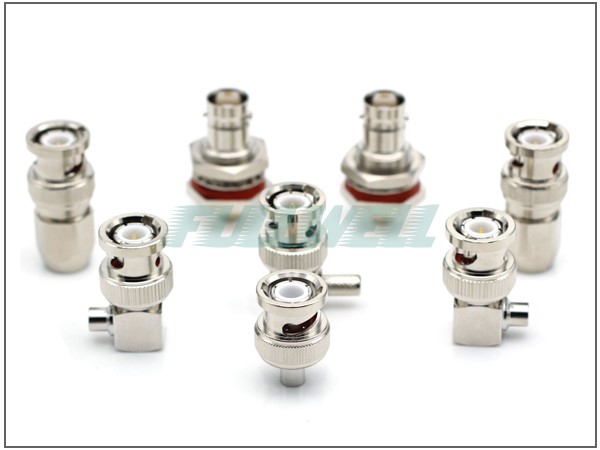

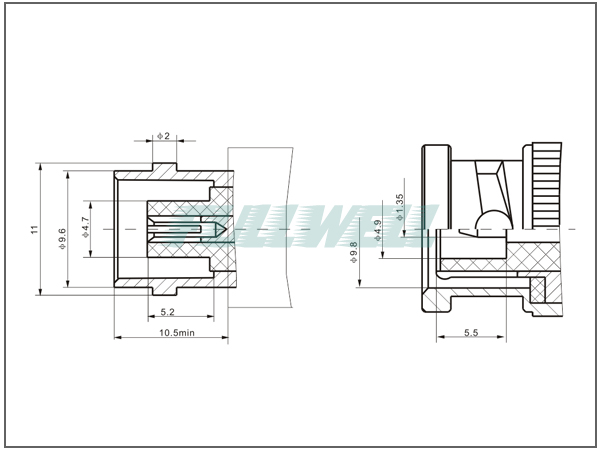

BNC connector

Electrical characteristics

50 Ω / 75 Ω impedance

Operating frequency range 0 to 4 GHz / 0 to 1 GHz

Voltage VSWR ≤1.3 (Straight Connector)

1.35 or less (right Angle connector)

Signal leakage ≥55 dB

Insulation resistance voltage 1500 V RMS

Page 4 of 4 Voltage RMS ≥500 V depending on cable.

Internal contact resistance Ω 1.5 m or less

External conductor impedance Ω 1 m or less

Product features

BNC connectors with a nominal impedance of 50 ohm are designed for telecommunications

Data communication as well as testing and instrumentation. The nominal impedance is 75

Ohm's BNC connectors are designed for broadcasts that require impedance matching performance

Designed for movies and other applications.

Both 50 - and 75-ohm BNC connectors are interchangeable.
