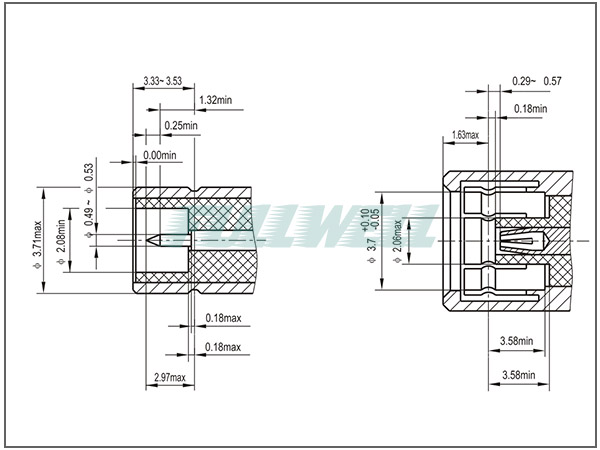

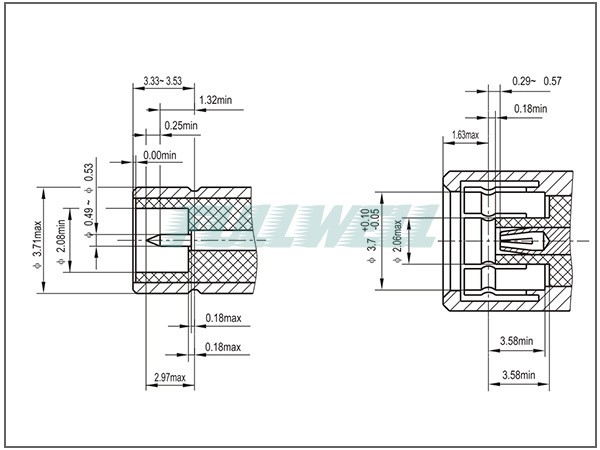

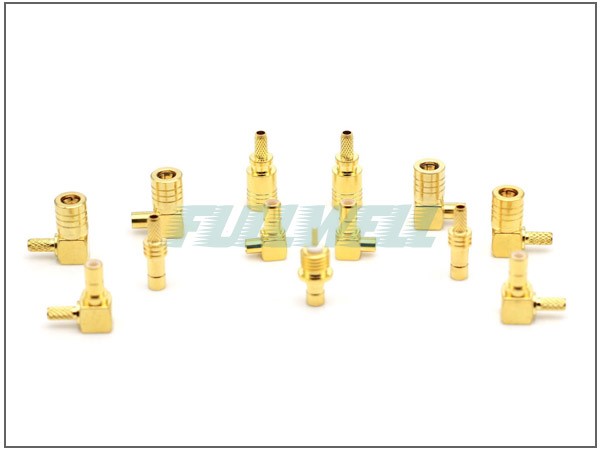

SMB connectors
Electrical characteristics
50 Ω / 75 Ω impedance
Operating frequency range 0 to 4 GHz
Voltage VSWR ≤1.3 (Straight Connector)
1.45 or less (right Angle connector)
Signal leakage ≥55 dB
Insulation resistance voltage 750 V RMS
Page 4 of 4 Voltage RMS ≥250 V depending on cable.
Internal conductor resistance Ω 5 m or less
External conductor impedance Ω 2.5 m or less
Product features
The combination of low cost and high quality
Low reflection, broadband performance DC to 4 GHz
Quick locking mechanism for quick connection/disconnection
50 ohm or 75 ohm impedance.
Various electroplating options are available.
Interface complies with IEC 169-36, CECC 22220
The product application
• Telecommunication systems
• Testing and measurement
• Meter control
• Wireless transmission
• Process control
• Computer network
• Base station microwave components
• Wide area radio
• Imaging system
