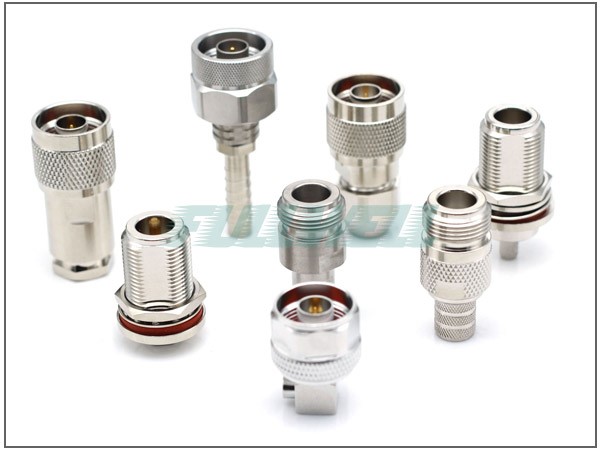

N connector
Electrical characteristics
50 Ω / 75 Ω impedance
Operating frequency range 0 to 11GHz / 0 to 1.5GHz
Voltage VSWR ≤1.3 (Straight Connector)
1.35 or less (right Angle)
Signal leakage ≥60 dB
Insulation resistance voltage 2500 V RMS
Page 4 of 4 Voltage RMS depending on the cable content.
Internal conductor resistance Ω 1 m or less
External conductor impedance Ω 1 m or less
Product features
A variety of specifications for a variety of common coaxial cable.
Threaded connection locking mechanism.
Clamp terminals provide lower installation costs

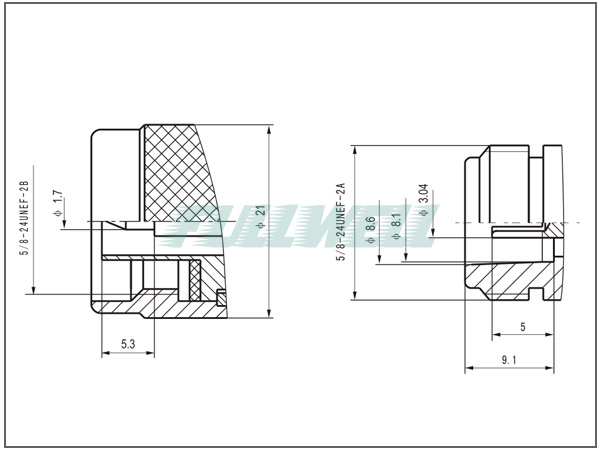

Interface dimensions conform to IEC 169-16, CECC 22210, MIL-STD-348B
The product application
•The antenna,
•Base stations,
• Microwave components (power divider and combiner, filter, diplexer)
•The transmitter,
• radio
•The receiver,
• radar
• Testing and measurement
• instrument
•Local area network (LAN)
