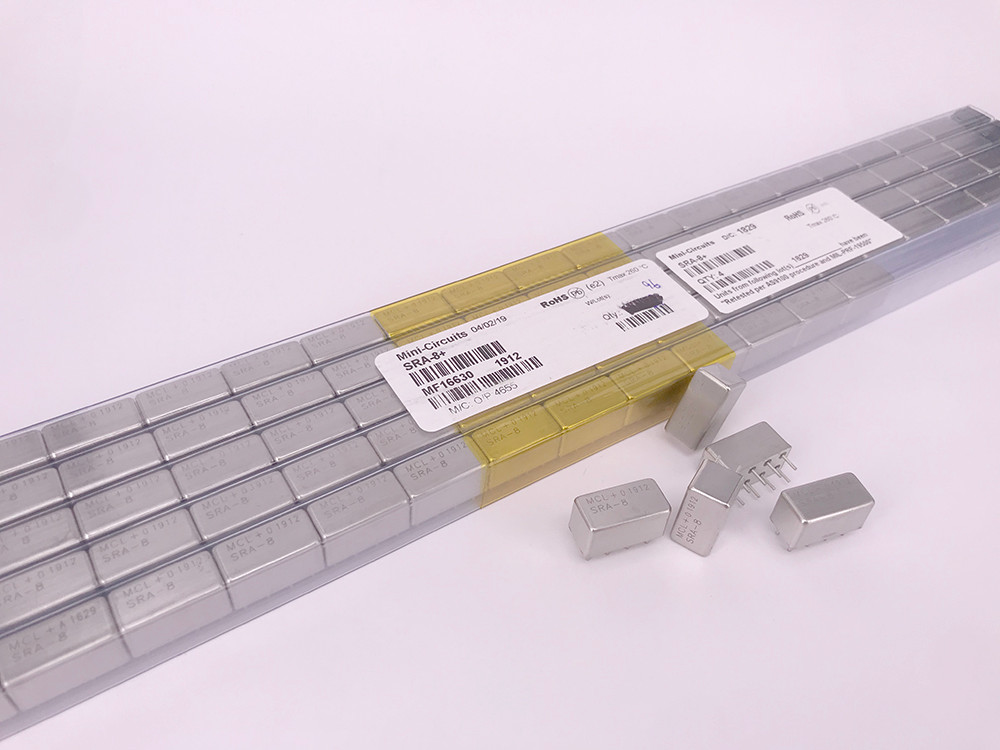

产品名称：Minicircuits 混频器
产品编号：
市场价格：
销售价格：
上架时间：2021-07-07

在线订购

上海富为电子为您提供 Mini-circuits 目录内及非目录产品，提供行业内选择最多的射频混频器，包括同轴，表贴和MMIC管芯型号，工作频率覆盖50 MHz至40 GHz！可满足用户宽带性能，高IP3，低失真，上变频，下变频，有源混频，高可靠性陶瓷混频等各种需求。

*LO功率从3至27dBm

*优异的可重复性

*密封陶瓷封装适用于高可靠性应用

*MMIC混频器频率可高至40 GHz

Mini-circuits 衰减器选型表下载

同轴式混频器.pdf

贴片式混频器.pdf

直插式混频器.pdf

或登录 http://www.minicircuits.com 官网查阅更新产品发布。

上海富为电子有限公司常备Mini-circuits 同轴放大器库存现货，欢迎来电垂询！

型号	安装方式	频率低 hmz	频率高 hmz	LO频率低(mhz)	LO频率高(mhz)	if_freq_low	if_freq_high	lo_lvl_typ	conversion_loss_typ	子类别	技术
ADE-1+	SMT	0.5	500	0.5	500	DC	500	7	5	Double Balanced Mixer	Core & Wire
ASK-1-X65+	Plug-In	1	600	1	600	DC	600	7	5.58	Double Balanced Mixer	Core & Wire
HJK-272H+	SMT	600	2700	600	2700	10	1000	17	7.7	Double Balanced Mixer	Core & Wire
JCIR-4MH+	SMT	430	930	500	1000	65	75	18	7.9	Image Reject	Core & Wire
JCIR-152H+	SMT	1000	1500	1080	1580	68	100	15	7.5	Image Reject	Core & Wire
JMS-1+	SMT	2	500	2	500	DC	500	7	5.75	Double Balanced Mixer	Core & Wire
JMS-1H+	SMT	2	500	2	500	DC	500	17	5.9	Double Balanced Mixer	Core & Wire
JMS-1LH+	SMT	2	500	2	500	DC	500	10	5.75	Double Balanced Mixer	Core & Wire
JMS-1MH+	SMT	2	500	2	500	DC	500	13	5.75	Double Balanced Mixer	Core & Wire
JMS-2+	SMT	20	1000	20	1000	DC	1000	7	7	Double Balanced Mixer	Core & Wire
JMS-5MH+	SMT	5	1500	5	1500	DC	1000	13	5.7	Double Balanced Mixer	Core & Wire
JMS-11X+	SMT	5	1900	5	1900	5	1000	7	6.7	Double Balanced Mixer	Core & Wire
JYM-28H+	SMT	400	2800	400	2800	4	700	17	6.3	Double Balanced Mixer	Core & Wire
JYM-30H+	SMT	2	3000	2	3000	4	1400	17	6	Double Balanced Mixer	Core & Wire
LRMS-1+	SMT	0.5	500	0.5	500	DC	500	7	5.94	Double Balanced Mixer	Core & Wire
LRMS-1HJ+	SMT	2	500	2	500	DC	500	17	6.25	Double Balanced Mixer	Core & Wire
LRMS-25J+	SMT	750	2500	750	2500	DC	600	10	5.2	Double Balanced Mixer	Core & Wire
LRMS-30J+	SMT	200	3000	200	3000	DC	1000	7	6.8	Double Balanced Mixer	Core & Wire
MA3-242LH+	SMT	850	1200	850	1200	50	80	0	5.5	Active Mixer	MMIC
MAC-12G+	SMT	3800	12000	3800	12000	DC	1800	7	6.3	High Reliability	LTCC
MAC-80H+	SMT	2800	8000	2800	8000	DC	1250	17	6.5	High Reliability	LTCC
MAC-85+	SMT	2800	8500	2800	8500	DC	1250	7	6.1	High Reliability	LTCC
MAC-85L+	SMT	2800	8500	2800	8500	DC	1200	4	7	High Reliability	LTCC
MAC-113H+	SMT	3800	11000	3800	11000	DC	1800	17	6.5	High Reliability	LTCC
MACA-63H+	SMT	2000	6000	2000	6000	DC	1000	0	6.9	Active Mixer	LTCC
MACA-242H+	SMT	750	2400	750	2400	DC	500	-3	6.1	Active Mixer	LTCC
MBA-15L+	SMT	1200	2400	1200	2400	DC	600	4	6.5	Double Balanced Mixer	LTCC
MCA-35H+	SMT	500	3500	500	3500	10	1500	17	6.9	Triple Balanced Mixer	Core & Wire
MDA4-752H+	SMT	2200	7500	2200	7500	30	1600	0	-9.1	Active Mixer	MMIC
MDB-73H-D+	Die	2200	7000	2200	7000	DC	1600	15	8.5	Double Balanced Mixer	MMIC
MDB-653H-D+	Die	20000	65000	20000	65000	DC	20000	15	11	Double Balanced Mixer	MMIC
RAY-1+	Plug-In	5	500	5	500	DC	500	23	6.57	Double Balanced Mixer	Core & Wire
RMS-1+	SMT	0.5	500	0.5	500	DC	500	7	5.94	Double Balanced Mixer	Core & Wire
RMS-1H+	SMT	2	500	2	500	DC	500	17	6.25	Double Balanced Mixer	Core & Wire
RMS-1MH+	SMT	2	500	2	500	DC	500	13	6.07	Double Balanced Mixer	Core & Wire
RMS-2+	SMT	5	1000	5	1000	DC	1000	7	6.67	Double Balanced Mixer	Core & Wire
RMS-2MH+	SMT	5	1000	5	1000	DC	1000	13	6.72	Double Balanced Mixer	Core & Wire
RMS-5+	SMT	5	1500	5	1500	DC	1000	7	5.92	Double Balanced Mixer	Core & Wire
RMS-5MH+	SMT	10	1500	10	1500	DC	900	13	5.67	Double Balanced Mixer	Core & Wire
RMS-11F+	SMT	350	2000	350	2000	DC	400	7	5.5	Double Balanced Mixer	Core & Wire
SAY-1+	Plug-In	0.1	500	0.1	500	0.01	500	23	4.85	Double Balanced Mixer	Core & Wire
SBL-1+	Plug-In	1	500	1	500	DC	500	7	5.6	Double Balanced Mixer	Core & Wire
SBL-11+	Plug-In	5	2000	5	2000	10	600	7	7.08	Double Balanced Mixer	Core & Wire
SCM-1+	SMT	1	500	1	500	DC	500	7	5.72	Double Balanced Mixer	Core & Wire
SIM-43H+	SMT	1000	4000	1000	4000	DC	1500	17	6.5	Double Balanced Mixer	LTCC
SIM-43LH+	SMT	824	4200	824	4200	DC	1500	10	6.3	Double Balanced Mixer	LTCC
SIM-153MH+	SMT	3200	15000	3200	15000	DC	4000	13	7.5	Double Balanced Mixer	LTCC
SIM-U742MH+	SMT	2300	7400	2300	7400	0.1	3300	13	8	Up Converter	LTCC
SIMA-5H	Plug-In	2	1500	2	1500	DC	1000	17	6.94	Double Balanced Mixer	Core & Wire
SRA-3+	Plug-In	0.025	200	0.025	200	DC	200	7	4.61	Double Balanced Mixer	Core & Wire
SRA-3H+	Plug-In	0.05	200	0.05	200	DC	200	17	5.18	Double Balanced Mixer	Core & Wire
SRA-3MH+	Plug-In	0.025	200	0.025	200	DC	200	13	4.77	Double Balanced Mixer	Core & Wire
SRA-6+	Plug-In	0.003	100	0.003	100	DC	100	7	4.58	Double Balanced Mixer	Core & Wire
SRA-8+	Plug-In	0.0005	10	0.0005	10	DC	10	7	5.69	Double Balanced Mixer	Core & Wire
SYM-2+	SMT	2	1000	2	1000	DC	1000	7	5.4	Double Balanced Mixer	Core & Wire
SYM-25DMHW+	SMT	40	2500	40	2500	DC	1000	13	6.6	Double Balanced Mixer	Core & Wire
TAK-5+	Plug-In	0.01	250	0.01	250	DC	250	7	4.65	Double Balanced Mixer	Core & Wire
TFM-11+	Plug-In	1	2000	1	2000	5	600	7	7.16	Double Balanced Mixer	Core & Wire
TUF-2SM+	SMT	50	1000	50	1000	DC	1000	7	5.85	Double Balanced Mixer	Core & Wire
TUF-3+	Plug-In	0.15	400	0.15	400	DC	400	7	4.7	Double Balanced Mixer	Core & Wire
ZAD-1+	Connector	0.5	500	0.5	500	DC	500	7	5.24	Double Balanced Mixer	Core & Wire
ZAY-2	Connector	10	1000	10	1000	DC	1000	23	6.89	Double Balanced Mixer	Core & Wire
ZFM-11+	Connector	1	2000	1	2000	5	600	7	7.03	Double Balanced Mixer	Core & Wire
ZP-1+	Connector	2	600	2	600	DC	600	7	5.85	Double Balanced Mixer	Core & Wire
ZX05-10-S+	Connector	10	1000	10	1000	DC	800	7	6.8	Double Balanced Mixer	Core & Wire
ZX05-U742MH-S+	Connector	2300	7400	2300	7400	0.1	3300	13	8.3	Up Converter	Core & Wire
